CAN Version
Below is the pinout as well as all additional information with regards to the CAN version of the SDP3x Airspeed sensor.
Connector Pinouts

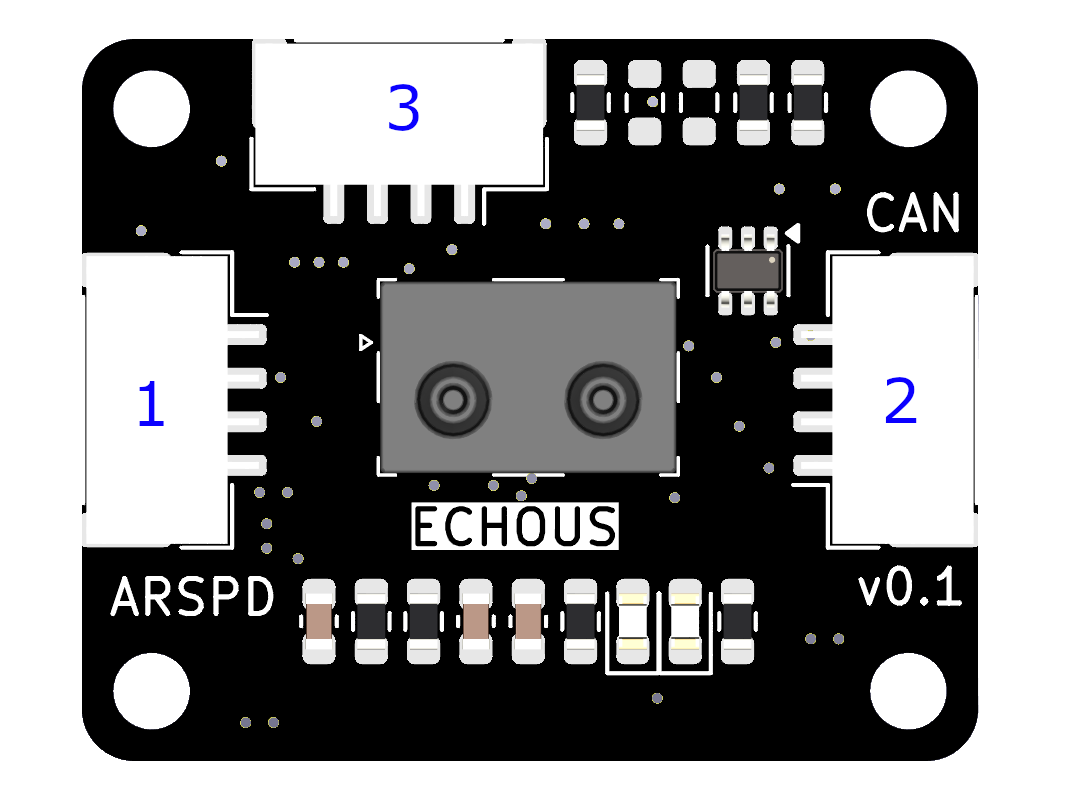

CAN 1 & CAN 2 (4-Pin)
| Pin | Name | Function |
|---|---|---|
| 1 | 5V | Power supply |
| 2 | CAN H | CAN High |
| 3 | CAN L | CAN Low |
| 4 | GND | Ground |
I2C JST 3 (4-Pin)
| Pin | Name | Function |
|---|---|---|
| 1 | 5V | Power supply |
| 2 | SCL | I2C Clock line |
| 3 | SDA | I2C Data line |
| 4 | GND | Ground |

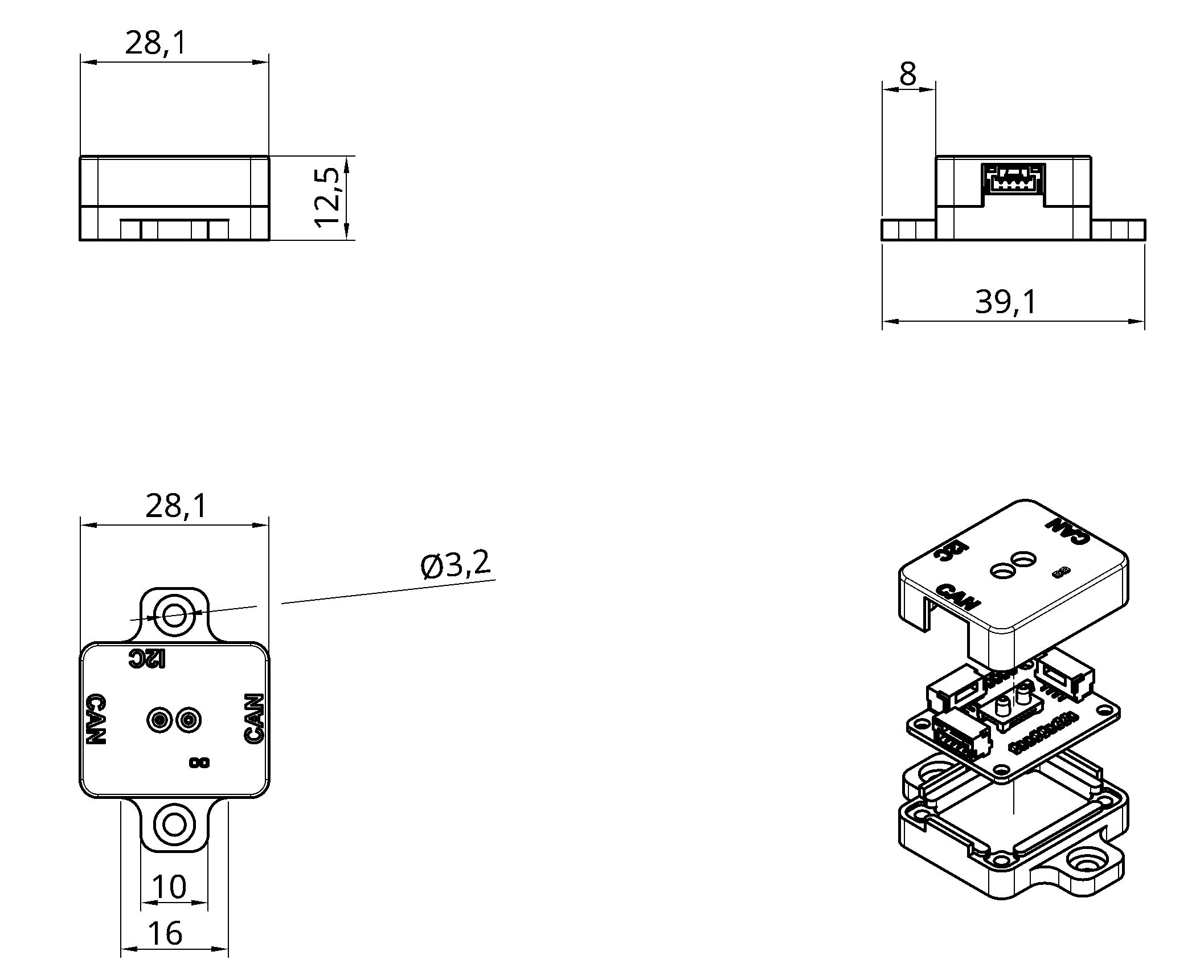

Dimensions
