Specifications

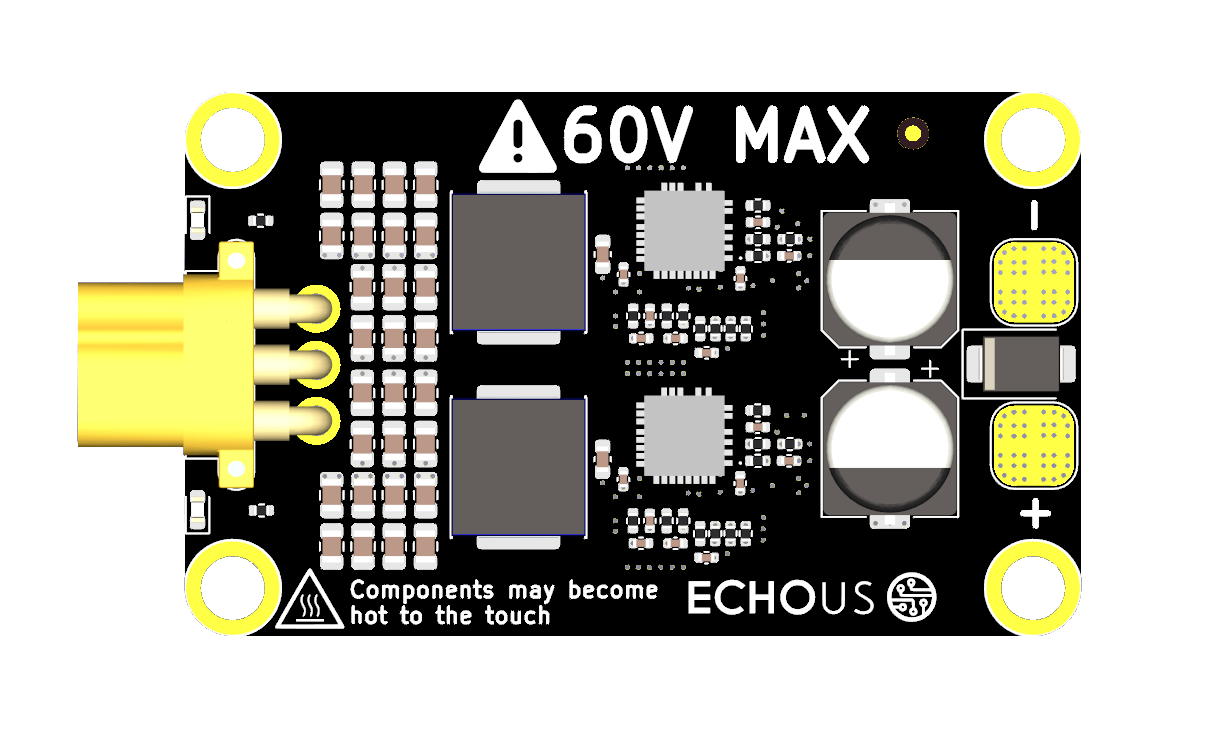

5v3 PMB

This Two Channel version of the range packs two redundant 5.3V, 4.5A channels for powering the cube range of flight controllers (and peripherals). The board features an included cover, with removable mounting tabs, allowing mounting in a variety of scenarios.

Features​

  • Compact size at 56mm x 34mm x 12mm
  • 5.3V output channels are fully redundant from one another
  • 4.5A continuous output with 5A active current limit
  • Overheating & Short circuit protection
  • Built-in spike suppression on input for enhanced resilience
  • Requires no cooling
  • Output ripple <2% (<0.1V)
  • Output indicator LEDs are visible from all angles
  • MR30 output connector for robust connection and easy integration
