Specifications

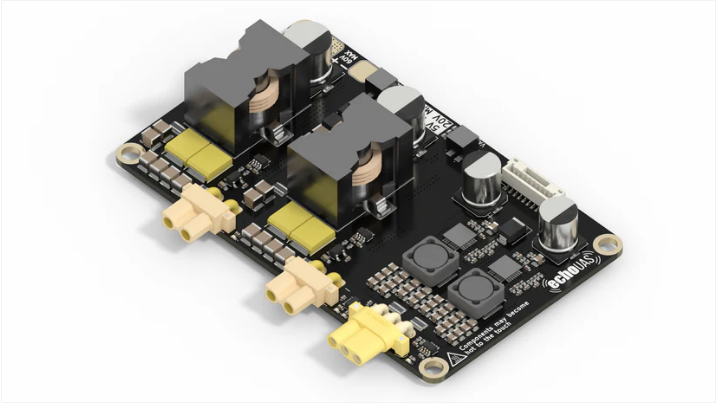

Utilizing the latest in voltage regulator & GAN technology to pack up to 500+ watts of power conversion into a small, highly efficient form factor. The EchoUS Power Management range of products are the go-to for use on UAVs and Drones.
This Four Channel version packs two adjustable channels with a maximum of 240W output (20A at 12V output) and a voltage range of 5–20V, and two redundant 5.3V, 4.5A channels for powering the Cube range of flight controllers and peripherals.
The board features an included heatsink and cover with mounting tabs for a variety of mounting scenarios, which can also be removed if not needed. The voltage is adjustable via a small potentiometer for each of the adjustable channels.
Features
- Surge protected input
- XT-60 compatible input capable of 14S LiPo (60V absolute maximum)
- Robust XT30 output connectors for adjustable channels
- MR30 dual output connector for Cube power channels
- 96% maximum efficiency (may vary depending on input/output conditions)
- High switching frequencies for fast transient response
- Capable of sustained full load (1 min) with no airflow on 12S Li-Po
- Includes heatsink and cover with removable mounting tabs
- Voltage adjustable via small potentiometer for each adjustable channel
Channel Summary
| Channel | Output Voltage | Max Current | Max Power | Connector |
|---|---|---|---|---|
| Adjustable 1 | 5–20V (adjustable) | 20A @ 12V | 240W | XT30 |
| Adjustable 2 | 5–20V (adjustable) | 20A @ 12V | 240W | XT30 |
| Fixed 1 | 5.3V | 4.5A | ~24W | MR30 |
| Fixed 2 | 5.3V | 4.5A | ~24W | MR30 |
Input
| Parameter | Value |
|---|---|
| Input Connector | XT-60 |
| Max Input Voltage | 60V absolute maximum (14S LiPo) |
| Input Protection | Surge protected |

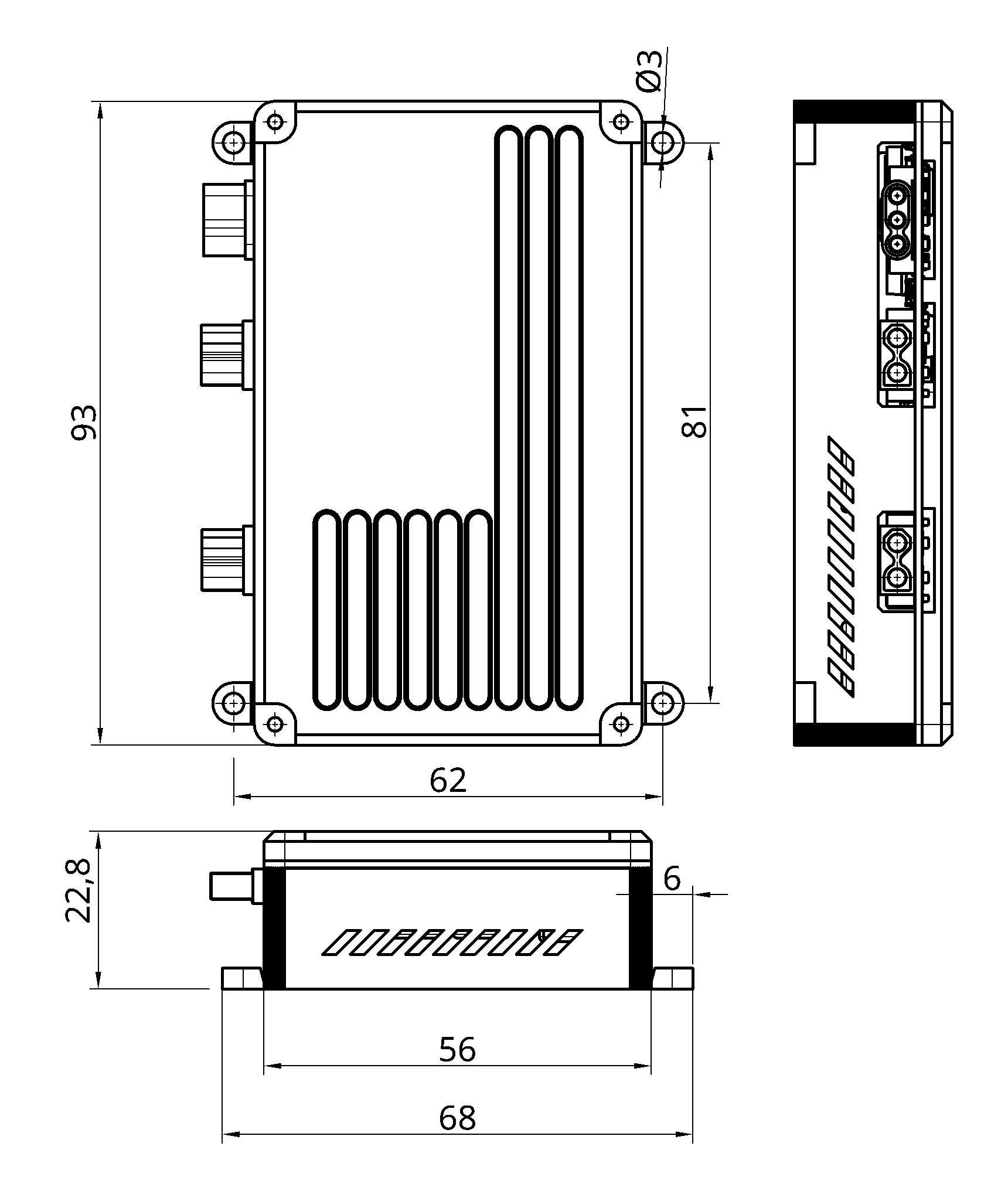

Dimensions
