Specifications

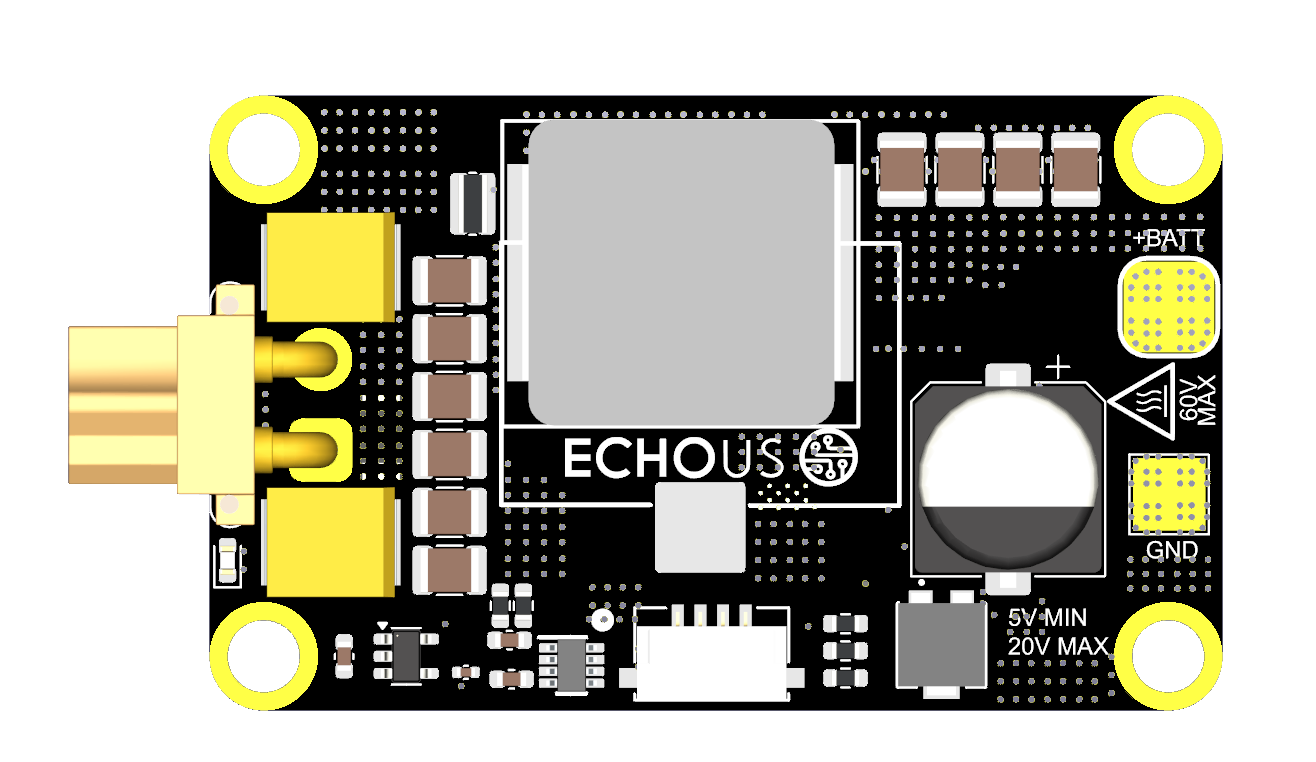

The EchoUS UBEC 60V 1CH range utilizes the latest in voltage regulator & GAN technology to pack up to 200 watts of power conversion into a small, highly efficient form factor — the go-to power solution for UAVs and Drones.
Two output variants are available: a standard 5–20V adjustable version and a high-voltage (HV) 20–28V adjustable version. Both share the same compact form factor, input range, and feature set.
Variant Comparison
| Parameter | Standard (5–20V) | HV (20–28V) |
|---|---|---|
| Output Voltage | 5–20V (adjustable) | 20–28V (adjustable) |
| Max Output Current | 20A @ 12V | 10A @ 24V |
| Max Output Power | 240W | 240W |
| Output Connector | XT30 | XT30 |
| Typical Use | Servos, FC peripherals, payloads | HV servos, lighting, HV payloads |
Shared Specifications
| Parameter | Value |
|---|---|
| Input Connector | XT-60 |
| Max Input Voltage | 60V absolute maximum (14S LiPo) |
| Input Protection | Surge protected |
| Efficiency | 96% maximum |
| Dimensions | 56mm × 34mm × 12mm |
Features
- Surge protected input
- XT-60 compatible input capable of 14S LiPo (60V absolute maximum)
- Robust XT30 output connector
- 96% maximum efficiency (may vary depending on input/output conditions)
- High switching frequencies for fast transient response
- Capable of sustained full load (1 min) with no airflow on 12S Li-Po
- Includes heatsink and cover with removable mounting tabs
- Output voltage adjustable via small potentiometer

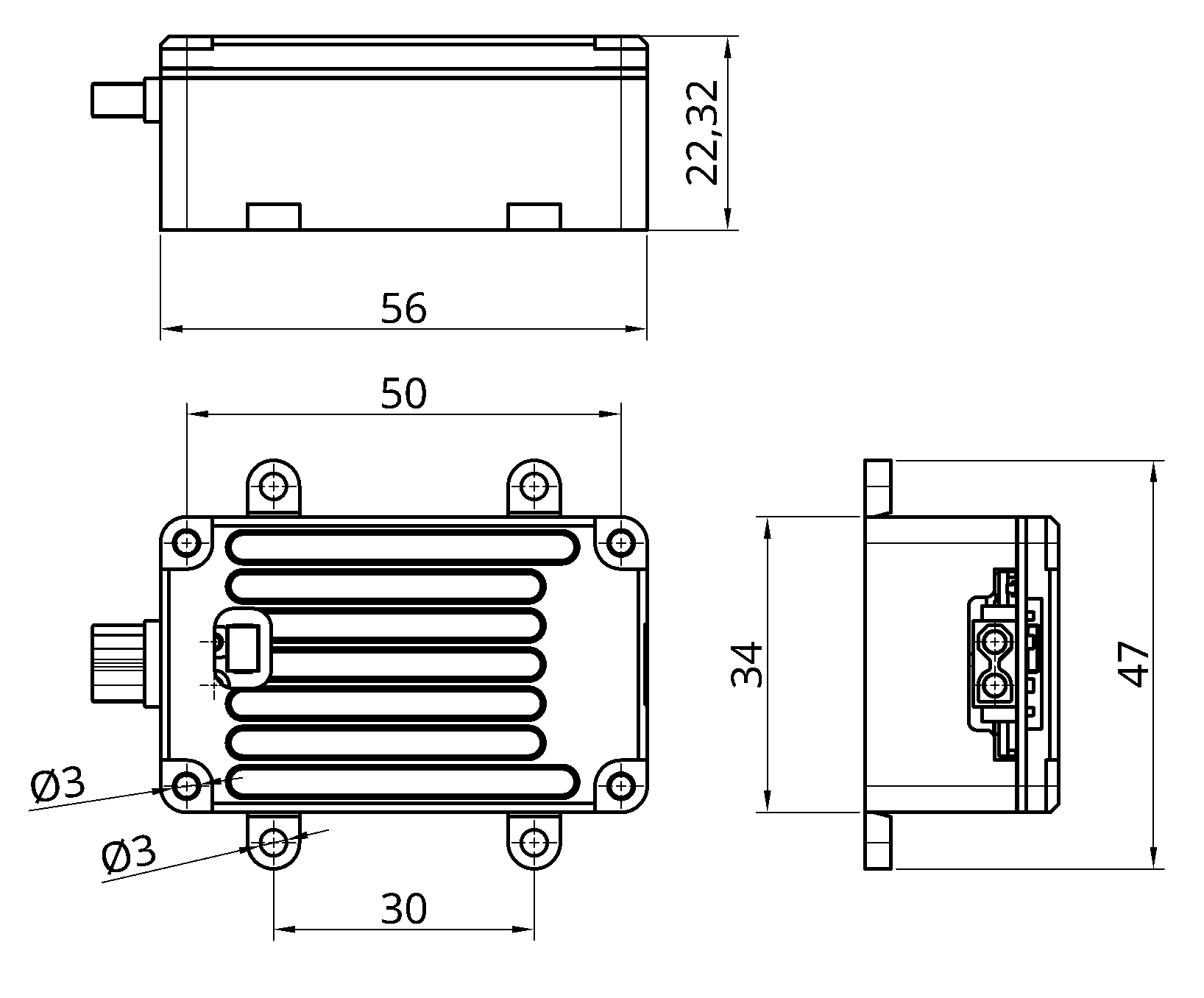

Dimensions
